Diamond Rubber Sheet
Diamond Rubber Sheet
Rubber Sheet

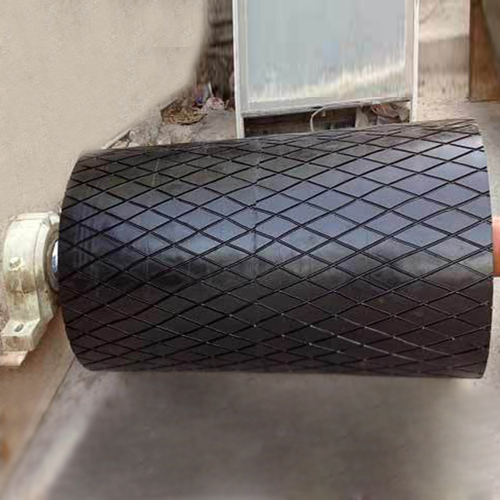

Range of Rubber Sheet :- The prominent range of “Arushi” Rubber sheet are pure rubber sheeting, skirt-board, Rubber insertion sheeting, Rubber lagging sheet in plain and diamond type, Electrical resistant rubber sheet, Packing sheet, Gum sheeting, Hospital sheeting, Sponge sheet, Foam sheet, Pulley lagging sheet, Food grade (white) sheet, Impression sheet, Rubberized cork sheet, Balata sheet.
Features :
- Thickness range from 0.5mm to 100mm.
- Width 1220mm (48″) in continuous length n smoothly glossy finish both side fabrics impress on finish
- Colour any colour as per your specific requirement.
- Insertion sheeting with one or two / multiple plies are also available special purpose rubber sheet available on customize basis.
- Special Note: we can manufacture special purpose rubber sheet up to 2000mm width.
Characteristics :
Natural Rubber / SBR
Having good machining properties, weather resistance and acid resistance. With more resistant to ageing, temperature, middle pressure, anti-shock and sealing etc. General purpose rubber sheeting mainly used as sealing gasket, sealing strip, it also could be put on the workbench or used as rubber matting.
| Type | Specific Gravity (g/cc) | Hardness (Shore A)±5 | Tensile Strength (Mpa) | Elongation at break % | Working Temperature (°C) |
|---|---|---|---|---|---|
| NR/SBR | 1.45 1.5 1.6 1.7 |
50 60 65 70 |
5 4 3 2-2.5 |
300 250 250 200 |
-20/70 -20/70 -20/70 -20/80 |
| NR/SBR 1 Ply | 1.6 | 65 | 3 | 250 | -20/70 |
| NR/SBR 2 Ply | 1.6 | 65 | 3 | 250 | -20/70 |
| Red SBR Sheeting | 1.7 | 80 | 3 | 200 | -20/70 |
| Grey SBT Sheeting | 1.7 | 80 | 3 | 200 | -20/70 |
